Nasenkonus NK 63 für 1” – Messmikrofonkapsel MK 102
Nose cone NK 63 for 1“ – measuring microphone capsule MK 102

Hersteller / manufacturer: RFT Mikrofontechnik Gefell
Baujahr: 1990

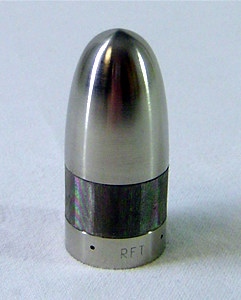

Abb: Nasenkonus NK 63

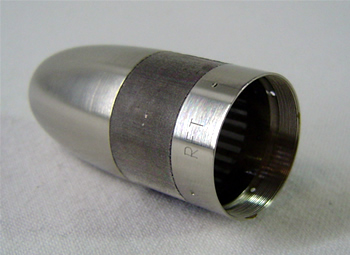

Abb: Nasenkonus NK 63

Nasenkonus NK 63

Nasenkonus NK 63

Anwendung

Der Nasenkonus NK 63 dient zur Minderung der Windgeräusche bei akustischen Messungen in einer axial zum Mikrofon gerichteten Luftströmung hoher Geschwindigkeit sowie zur Verringerung der Abhängigkeit des Übertragungsmaßes vom Schalleinfallswinkel bei Frequenzen über 4 kHz.
Er wird anstelle der Vorsatzelektrode (Schutzkappe der Mikrofonkapsel) auf die Messmikrofonkapsel MK 102 geschraubt.

Aufbau und Wirkungsweise

Gegenüber der Vorsatzelektrode erhöht der Nasenkonus den Störabstand um ca. 20 dB.
Nasenkonus NK 63 verringert die Abhängigkeit des Übertragungsmaßes vom Schalleinfallswinkel bei Frequenzen zwischen 4 und 9 kHz wesentlich. Damit steht eine Kombination zur Verfügung, die im Frequenzbereich bis 9 kHz praktisch eine Kugelcharakteristik aufweist. Dadurch wird der Frequenzgang in diesem Bereich bei Messungen im diffusen Schallfeld linearisiert.
Der aerodynamische günstige Grundkörper des Nasenkonus ist seitlich mit Schalleintrittsöffnungen versehen, die mit einer dünnen Gaze abgedeckt sind. Das Anschlussgewinde entspricht dem der Vorsatzelektrode.

Technische Daten

Winddämpfung gegenüber der Vorsatzelektrode (v = 20 m/s)    20 dB
Obere Grenzfrequenz (Abfall ca. 5 dB)    9 kHz
Außendurchmesser    24 mm
Länge    53,5 mm
Masse    194 g

Nose Cone NK 63         for 1”-measurement microphone capsules
Manufacturer: RFT VEB Mikrofontechnik Gefell

Application

The Nose cone NK 63 is used fort he impairment of the wind noise when carrying out acoustic measurements in an air flow of high velocity directed axial to the microphone as well as for reducing the dependence of the propagation constant on the angle of incidence of sound at frequencies above 4 kc/s.
The adapter electrode is replaced by screwing the cone onto the standard microphone capsule MK 102.

Construction and Mode of Action

The signal-to-noise ratio is increased by the Nose cone by approx. 20 dB as compared with the adapter electrode. It can be seen that the dependence of the propagation constant on the angle of incidence of sound is essentially  reduced at frequencies between 4 an 9 kc/s with the NK 63 Model due to the Nose cone, thus having a combination available which, in practice, provides an omni-direction characteristic within the frequency range up to 9 kc/s. By doing this the frequency response within this range is linearized at measurements in the diffused sound field. The backing material of the Nose cone NK 63 favourable in regard to aerodynmics is provided laterally with sound input ports covered by a thin gauze.
The connecting thread corresponds to the one of the adapter electrode of the MK 102.

Technical Data

Wind damping compared with the adapter electrode (v = 20 m/s)    20 db
Upper limiting frequency (drop approx. 5 db)    9 kc/s
Outside diameter    24 mm
Length    53,5 mm
Weight    104 g
