1“ – Mikrofonvorverstärker MV 102 von RFT Mikrofontechnik Gefell
1“ – Microphone preamplifier MV102 of RFT Mikrofontechnik Gefell

Baujahr: 1990

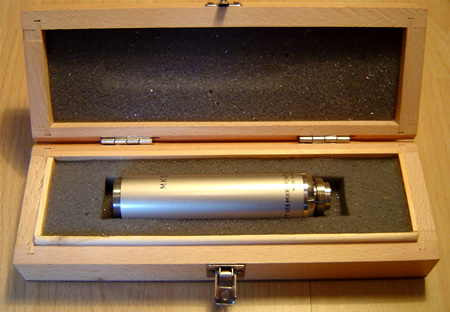

Abb. MV 102

Abb. MV 102

Die Kapselaufnahme des Messmikrofonvorverstärkers MV 102 besitzt das metrische Anschlussgewinde M 20 x 0,5. Zur Verringerung der Eingangskapazität des Verstärkers ist um den sich selbst reinigenden Mittelkontakt ein Schirmring angeordnet. Für die Verstärkereingangsstufe wurde ein sorgfältig ausgesuchter Sperrschicht-Feldeffekttransistor russischer Bauart verwendet.
Eingangsgrößen des Vorverstärkers:
CE  = 6 pF    Ri = 3000 MΩ
Der Anschluss der Speise- und Signalleitung erfolgt über eine 5-polige Präzisionssteckverbindung der Kabel C58.50, C 58.51 oder auch C 58.00 mit einseitig offenem Kabelende zur variablen Kontaktierung.

The capsule bushing of the measurement microphone preamplifier is provided with an metrical end-thread of M 20 x 0,5. To lower the input capacitance of the amplifier, a screen ring is arranged around the self-cleaning centre contact. For the input of the amplifier a carefully blocking layer field effect transistor was chosen.
Sizes of input of the preamplifier:
CE  = 6 pF    Ri = 3000 MΩ
The connection of the supply and signal line is done by means of a 5-pole precision connector. Cables for that are the types C58.50 or C 58.51 and also type C 58.00 with an open end at one site of the cable for a variable connection.

Technische Daten
Technical data

Eingangsimpedanz/ input impedance: >200 MOhm
Eingangskapazität / input capacitance: < 6,5 pF
Ausgangsimpedanz / output impedance: ca. 750 Ohm
Spannungsdämpfung/ voltage attenuation: –     1 dB
Fremdspannung am Ausgang /
distortion voltage at the output: < 20 μV
Grenzschalldruck mit Kapsel MK 102 /
border sound level with capsule MK 102: 138 dB (1 kHz, 3 % Klirrfaktor/Distortion factor)
Sperrschicht Feldeffektransistor/
Blocking layer field effect transistor
Abmessungen / dimensions: Durchm. / diameter 23,8 mm x 102 mm
Masse / weight: 100 g
Erforderliche Spannungen zur
Stromversorgung / Voltages necessary
for power supply: 85 V / 200 V_ (polarization) / 5,8 V,
max. 150 mA ( für Heizung / for heating)
