Ersatzkapazität K 67
Measuring capacitor K 67

Hersteller/manufacturer: RFT Mikrofontechnik Gefell
Baujahr: 1990

Abb: Ersatzkapazität für 1/2" - Kapseln MK

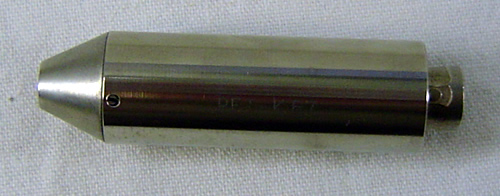

Abb: Ersatzkapazität K 67

Anwendung

Der Messkondensator K 67 ist die Ersatzkapazität, die, anstelle der 1/4“-Messmikrofonkapsel MK 301, über den Adapter A 67 auf die Messmikrofonvorverstärker MV 201, MV 202, MV 203 oder direkt, ohne Adapter A 67, auf den Messmikrofonvorverstärker MV 301 aufgeschraubt wird.
Die Ersatzkapazität ermöglicht die Ermittlung der Fremdspannung am Mikrofonverstärkerausgang bei betriebsmäßig abgeschlossenem Eingang..
Bei Verwendung als Eingangsadapter können die Verstärkung und der Frequenzgang des Mikrofonverstärkers gemessen und damit der  Ersatzstörschalldruck errechnet werden.

Aufbau

Das verstärkerseitige Ende des Messkondensators K 67 entspricht der zugehörigen Mikrofonkapsel MK 301, d. h. Anschlussgewinde und Mittelkontakt sind gleichartig ausgebildet. Die Einspeisung des Signals für Verstärkungs- und Frequenzgangmessungen erfolgt über einen BNC – Gehäusestecker.

Technische Daten

Kapazität: CE 6,8 pF
K 67 ersetzt folgende Kapsel:  MK 301
Temperaturbereich: + 20 °C … + 60 °C
Durchmesser: 17 mm
Länge: 60 mm
Masse: 50 g

Measuring capacitor K 67

Applications

The measuring capacitor K 67 is an auxiliary capacitance which can be screwed by means of the Adapter AS 67 onto the standard measurement microphone preamplifiers MV 201, MV 202 , MV 203 or directly onto the measurement microphone preamplifier MV 301 instead of the 1/4”-measurement microphone capsules MK 301.
The auxiliary capacitance enables the determination of the external voltage at the output of the microphone amplifier with the input locked under normal service conditions.
When used as an input adapter the application and the frequency response of the microphone amplifier can be measured and thus the auxiliary noise sound pressure can be calculated.

Design

The end of the measuring capacitor K 67 at the side of the preamplifier corresponds to the 1/4”-measurement microphone capsule MK 301.
The connecting thread and the centre contact are designed in the same way. The signal for measurement of the amplification and of the frequency response is fed through a BNC box-type-plug.

Technical Data

Capacitance CE: 6,8 pF
K 67 replaces following capsule: MK 301
Temperature range: – 20 °C … + 60 °C
Diameter: 17mm
Length: 60 mm
Weight: 50 g
